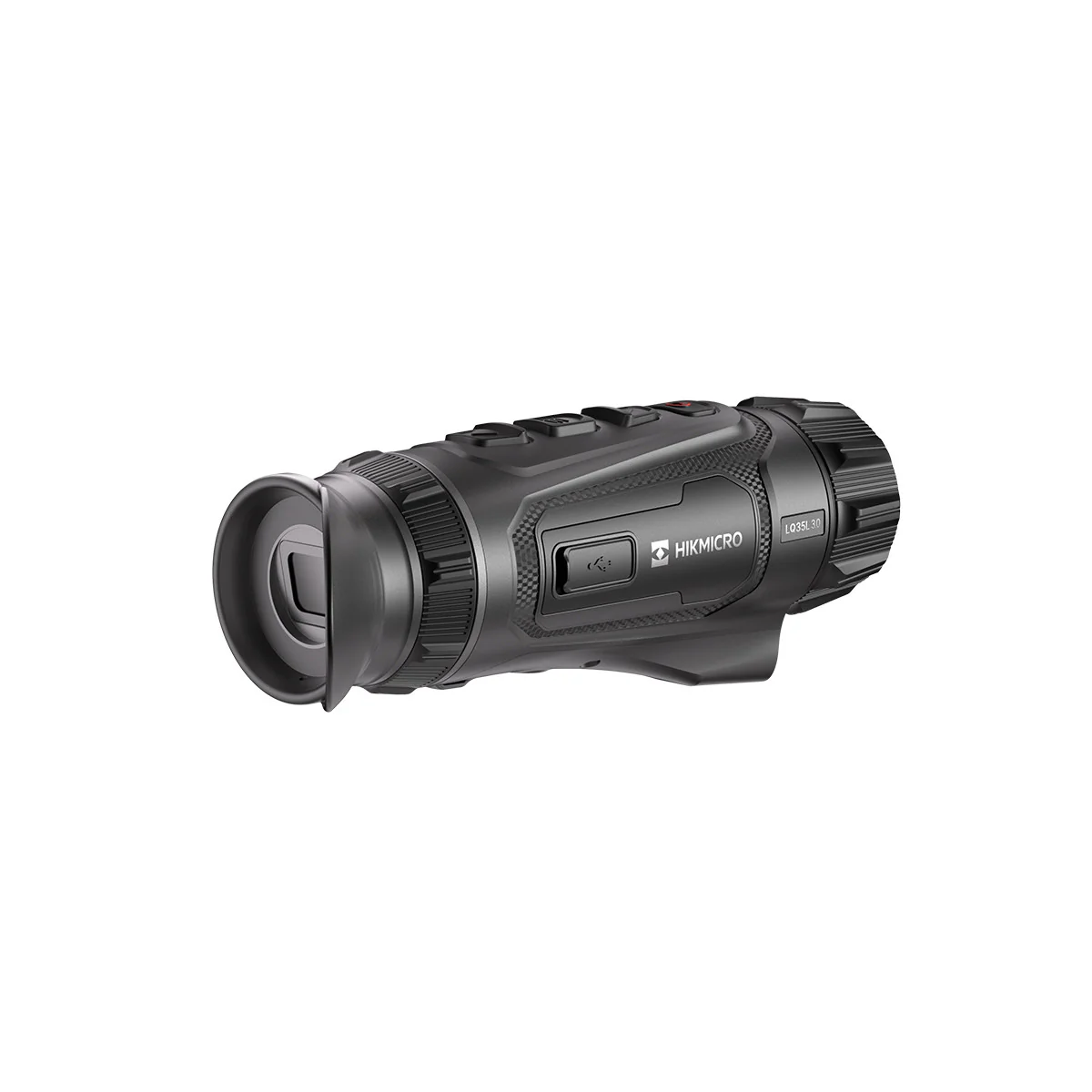

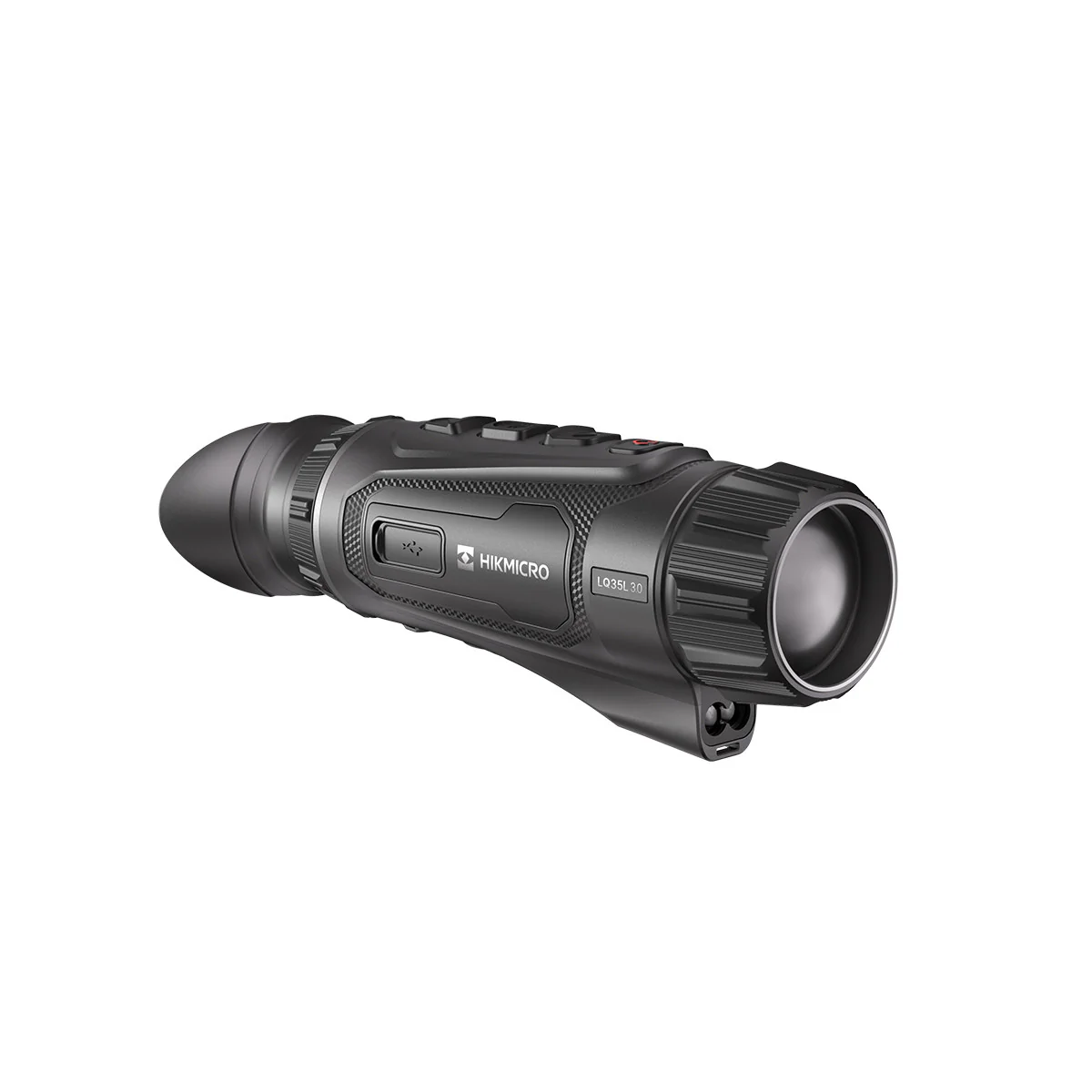

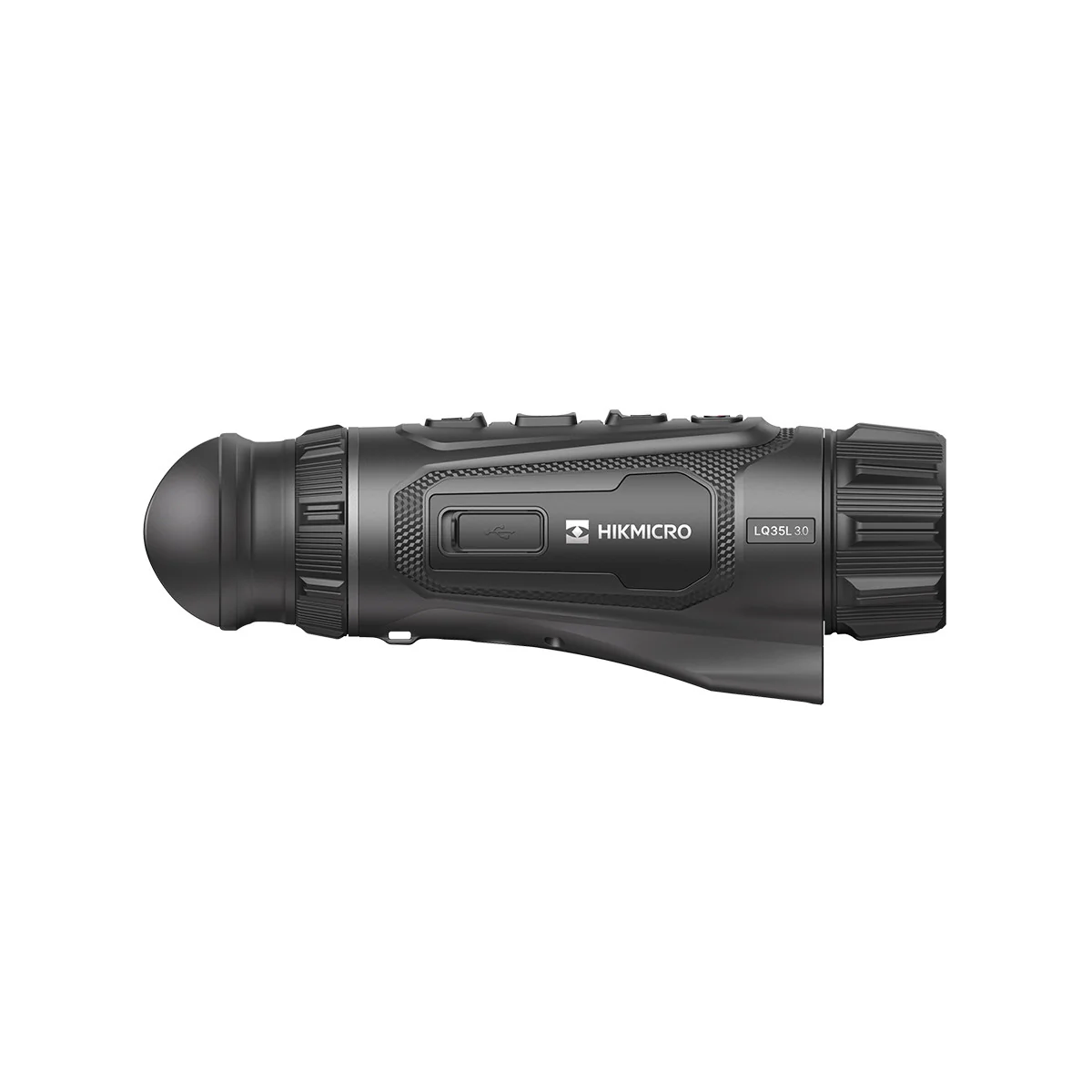

HIKMICRO Lynx LQ35L 3.0 35mm Thermal Monocular LRF

The Lynx 3.0, redefining entry-level thermal imagers.

The HIKMICRO Lynx 3.0 LQ35 represents the pinnacle of thermal monocular performance for serious professionals. Featuring a 640x512 thermal detector and a 35mm F1.0 lens, it delivers 1.9x base magnification out to 15.2x, a 12.5°×7.5° field of view, and a detection range of up to 1800 metres, making it the ultimate tool for long-range observation.

For the First time the LQ35 introduces an integrated Laser Range Finder (LRF) with a 905 nm wavelength and a maximum measuring range of 1000m, providing precise distance measurement directly within the thermal imaging system

Incorporating AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LQ35 offers superior image fidelity and consistency across challenging conditions. The HSIS shutterless technology enables smooth, silent operation for continuous, distraction-free imaging.

At 354.5 grams, the LQ35 remains portable yet robust. A replaceable 18650 battery provides up to 4.5 hours of operation at -20°C, ensuring dependable field endurance. Ideal for hunting, security, or professional surveillance, it delivers unmatched clarity and control.

Specs

• Max. Resolution- 640 × 512
• Frame Rate- 50 Hz
• Pixel Interval- 12 μm
• Response Waveband- 8 μm – 14 μm
• NETD- < 15 mK (@25°C), F#=1.0
• Lens (Focal Length)- 35 mm, f1.0
• Focus Mode- Focus Ring
• Detection Range- 1800 m
• Min. Focusing Distance- 3.5 m
• Magnification- 1.9× – 15.2× (8×)
• Field of View (H × V)- 12.5° × 7.5° / 21.9 m × 13.2 m @100 m
• Display- 1920 × 1080, 0.49 in, AMOLED
• Palettes- Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil- 6 mm
• Eye Relief- 20 mm
• Diopter (Range)- -5D to +3D
• Brightness Adjustment- Yes
• Tone Adjustment- Cold, Warm
• Contrast Adjustment- Yes
• Zoom Pro- Yes
• HSIS (HIKMICRO Shutterless Image System)- Yes
• Image Pro 3.0- Yes
• Record Video- Yes
• Capture Snapshot- Yes
• Audio Recording- Yes
• Standby Mode- Yes
• Built-in Memory- 64 GB EMMC
• PIP- Yes
• Hotspot- 2.4 GHz / 5 GHz Wi-Fi
• Hot Track- Yes
• Distance Measurement- Yes
• Local Album- Yes
• Battery Type- Replaceable & Rechargeable Li-ion 18650
• Battery Operating Time- 5-hour continuous (@25°C), 4.5-hour continuous (@-20°C)
• Type-C Power Supply- 5V DC, 2A
• External Power Supply- Supported, Direct Charging Supported
• Safety Class for Laser- Class 1
• Wavelength- 905 nm
• Max Measuring Range- 1000 m
• Min. Measuring Range- 10 m
• Measurement Accuracy- ±1 m
• Protection Level- IP67
• Dimension- 169.6 × 53.6 × 49.5 mm
• Weight- 354.5 g (with battery)
• Working Temperature- -30°C to 45°C (-22°F to 113°F)
• Humidity- ≤ 90%

Features

• Up to 640×512 Thermal resolution
• High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0).
• 35 mm, F1.0 lens with thermal detection range up to 1800 m
• HIKMICRO Shutterless Imaging System (HSIS)
• AI-powered Image Pro 3.0 and Zoom Pro algorithms
• 0.49-inch OLED display with 1920 × 1080 resolution
• Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
• Lightweight design at 354.5 g, with a pocket-sized build
• Integrated 1000m Laser Range Finder
